Get Male and Female Flanges in Class 150, 300, 600, 900, 1500, 2500 – As per ASME B16.5, Series A & B, BS10, EN 1092-1 & AWWA C207 Specifications – Direct from Manufacturer.
Bhavani Industries manufactures premium quality Male and Female Flanges for industrial applications, offering precision engineering and global standard compliance. As an ISO 9001:2015 certified manufacturer and supplier, we provide Stainless Steel, Carbon Steel, and Alloy Steel Male & Female Flanges for leak-proof and durable piping systems. Our flanges are designed as per ASME B16.5, B16.47 Series A & B, EN 1092-1, DIN, BS, and ISO standards, ensuring high performance and compatibility across diverse sectors.

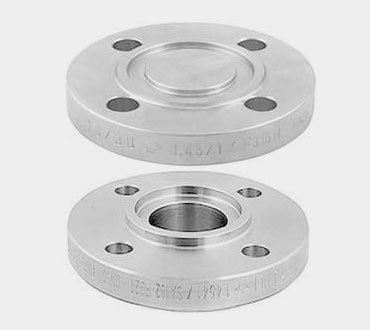

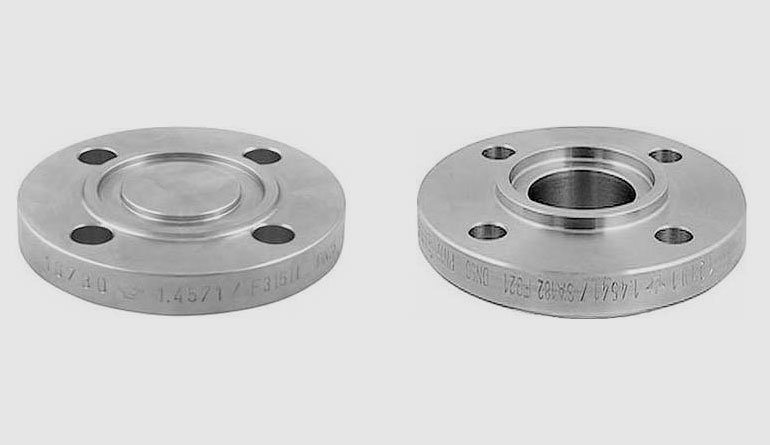

The Male and Female Flange design features a raised (male) face on one flange and a matching recessed (female) face on the other, ensuring secure gasket placement and enhanced sealing. Bhavani Industries manufactures these flanges to suit a wide range of pressure conditions and face types like RF, FF, and RTJ. They are widely used in oil & gas, petrochemical, power, marine, and offshore applications. We offer sizes from ½” to 48”, with precision machining for tight dimensional tolerances and sealing integrity.
Bhavani Industries provides Male and Female Flanges in both standard and customized dimensions. Material options include SS 304, 304L, 316, 316L, 321, Duplex, Super Duplex, Inconel, Monel, and other high-performance alloys. All products are delivered with MTCs, third-party inspection certificates, and compliance with NACE MR0175, PED, and IBR standards. We ensure accuracy in bore size, bolt circle diameter, face thickness, and surface finish to meet your project requirements.
Bhavani Industries’ Male and Female Flanges offer exceptional performance in high-pressure and high-temperature systems. Their tongue-and-groove style design ensures perfect alignment, gasket centering, and minimal risk of leakage. These flanges are commonly used in pressure vessels, heat exchangers, chemical plants, steam lines, and hydraulic systems. With excellent mechanical strength, corrosion resistance, and long service life, our flanges are the ideal solution for mission-critical applications across industries.
EN 1092-2 PN16 Male and Female Flange, MSS SP-44 Male Flanges, ASME B16.47 / ANSI B16.5 Small and Large Male Female Flange - Ready for Global Distribution in Various Face Types & Pressure Ratings.
Technical Index
Male and Female Flange Standard Specifications
| Product Name | Male Female Flanges | Large Male Female Flange | Small Male Female Flange |
|---|---|
| Flange Size Availability | ½” (15 NB) to 48” (1200 NB) |
| Flange Pressure Ratings | Class 150, 300, 600, 900, 1500, 2500, PN6, PN10, PN16, PN25, PN40, PN64 |
| Applicable Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605 |
| Flange Facing Types | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap Joint, Male & Female (M&F), Tongue & Groove (T&G) |
| Custom Fabrication | Manufactured as per AS, BS, ANSI, DIN, JIS standards | Custom designs available | Equal and Reducing Configurations |
| Material Test Certifications | EN 10204 3.1 & EN 10204 3.2 | Compliance with NACE MR0175, NACE MR0103 |
| Testing & Inspection Reports | 100% Radiography Test Report, EN 10204/3.1B, Raw Material Certification, Third-Party Inspection Reports |
| Testing Procedures | Hydrostatic Testing, Direct-Reading Spectrograph, Ultrasonic Flaw Detection, X-ray Examination, Magnetic Particle Inspection |
| Manufacturing Equipment | Hydraulic Press Machines, Induction Heating, Bending Machines, Sand-Blasting Units, CNC Machining, Beveling Machines |
| Flange Coating Options | Anti-Rust Paint, Black Oil Paint, Yellow Transparent Coating, Zinc Plating, Hot-Dip & Cold-Dip Galvanization |
| Material Sourcing Regions | India, USA, Japan, West Europe, South Korea |
| Global Export Markets | UAE, Jordan, Bahrain, Kuwait, Oman, Qatar, Saudi Arabia, USA, Singapore, Malaysia, Azerbaijan, Armenia, Georgia, Egypt, Nigeria, South Africa, Kenya, Morocco, Ethiopia, Ghana, Tanzania, Sudan, Uganda, Angola |
Male and Female Pipe Flange Standards
| ANSI/ASME B16.47 Flanges | ANSI/ASME B16.36 Flanges | ANSI/ASME B16.5 Flanges | Pr. EN1902-1 Flanges |
| DIN Flanges | JIS Flanges | BS 4504 Flanges | BS 10 Flanges |
| MSS SP-44 Flanges | JIS B2220 Flanges | KS B1503 Flanges | UNI Flanges |
| SABS/SANS 1123 Flanges | AS 2129, AS 4087 Flanges | ISO 9624, ISO 7005-1 Flanges | AWWA Flanges Standard |
| GOST Standard Flanges | API Flanges | AS/ANZ 4331.1 Flanges | Series A Flange |
| Series B Flange | SAE J518 Flanges | GB Flange | Norwegian Standard Flanges |
Male and Female Flange Material Grades and Standards
| Stainless Steel Male and Female Flanges | ASTM/ASME A/SA182: F304, F304L, F316, F316L | ASTM/ASME A/SA351: CF3, CF3M, CF8, CF8M | DIN: 1.4306, 1.4301, 1.4404, 1.4401, 1.4408, 1.4308, 1.4409 |
|---|---|
| Duplex Steel Male and Female Flanges | ASTM A182: S31803 / S32205 | Grades: F51, F52, F53, F54, F55, F57, F59, F60, F61 |
| Super Duplex Steel Male and Female Flanges | ASTM A182: S32750 / S32760 | Grades: F51, F52, F53, F54, F55, F57, F59, F60, F61 |
| Copper Nickel Male and Female Flanges | ASTM/ASME SB 61 / 62 / 151 / 152 | UNS: C70600 (90/10), C71500 (70/30), C71640 |
| Titanium Male and Female Flanges | ASTM B381 / ASME SB381: Gr.1, Gr.2, Gr.4, Gr.5, Gr.7 | UNS: R50250 (Gr.1), R50400 (Gr.2), R50550 (Gr.3), R50700 (Gr.4), R52400 (Gr.7), R53400 (Gr.12), R56320 (Gr.9), R56400 (Gr.5) |
| Copper Male and Female Flanges | Grades: TP1, TP2, C10100 – C12300, TU1, TU2, C12500, C14200, C14500 – C14530, C17200, C19200, C21000, C23000, C26000, C27000, C28000, C33000, C37000, C44300 – C44500, C60800, C63020, C68700, C70400, C70600, C71500, C71640 |
| Incoloy Male and Female Flanges | ASTM B564 / ASME SB564: Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 |
| Inconel Male and Female Flanges | ASTM B564 / ASME SB564: Inconel 600, 601, 625, 718, 783, 690, X750 |
| Nickel Alloy Male and Female Flanges | ASTM B564 / ASME SB564: Nickel 200, Nickel 201, Nickel 205, Nickel 205LC |
| Hastelloy Male and Female Flanges | ASTM B564 / ASME SB564: Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X |
| Monel Male and Female Flanges | ASTM B564 / ASME SB564: Monel 400 (UNS N04400), Monel 500 (UNS N05500) |
| Carbon Steel Male and Female Flanges | ASTM/ASME A/SA105, A/SA105N, A/SA216-WCB | DIN: 1.0460, 1.0402, 1.0619 | ASTM A105N, ASTM A350 LF2, ASTM A694 (F52, F56, F60, F65, F70, F80) |
| Alloy Steel Male and Female Flanges | ASTM A182 / ASME SA182: F5, F9, F11, F12, F22, F91 |
| Alloy 20 Male and Female Flanges | ASTM B462 / ASME SB462: Carpenter® 20 Alloy, Alloy 20Cb-3 |
| SMO 254 Male and Female Flanges | ASTM A182 / ASME SA182: SMO 254/6Mo, UNS S31254, DIN 1.4547 |
| Aluminium Male and Female Flanges | Grades: 5052, 6061, 6063, 2017, 7075 |
| Brass Male and Female Flanges | Grades: 3602, 2604, H59, H62 |
| Other Specialty Male and Female Flanges | Materials: Tin Bronze, Aluminum Bronze, Lead Bronze, Nimonic 75, Nimonic 80A, Nimonic 90, AISI 4140, AISI 4130, Mild Steel, Al6XN |
ASME B16.5 Flanges Types
ANSI B16.5 Male Female Flange Industries & Applications
ASME B16.5 Male & Female Flange Dimensions
| Nominal Size (in.) | RF, LJ, Large Male and Large Tongue | Small Male(3) | Small Tongue | ID of Large and Small Tongue | Large Female and Large Groove | Small Female (3) | Small Groove | ID of Large and Small Groove | Raised Face 150 and 300 Pound Standards (2) | RF, Large and Small Male and Tongue 400, 600, 900, 1500, & 2500 lb. Standards (2) | Deptd of Groove or Female |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R | S | T | U | W | X | Y | Z | ||||
| 1/2 | 1.38 | 0.72 | 1.38 | 1 | 1.44 | 0.78 | 1.44 | 0.94 | 0.06 | 0.25 | 0.19 |
| 3/4 | 1.69 | 0.94 | 1.69 | 1.31 | 1.75 | 1 | 1.75 | 1.25 | 0.06 | 0.25 | 0.19 |
| 1 | 2 | 1.19 | 1.88 | 1.5 | 2.06 | 1.25 | 1.94 | 1.44 | 0.06 | 0.25 | 0.19 |
| 1 1/4 | 2.5 | 1.5 | 2.25 | 1.88 | 2.56 | 1.56 | 2.31 | 1.81 | 0.06 | 0.25 | 0.19 |
| 1 1/2 | 2.88 | 1.75 | 2.5 | 2.12 | 2.94 | 1.81 | 2.56 | 2.06 | 0.06 | 0.25 | 0.19 |
| 2 | 3.62 | 2.25 | 3.25 | 2.88 | 3.69 | 2.31 | 3.31 | 2.81 | 0.06 | 0.25 | 0.19 |
| 2 1/2 | 4.12 | 2.69 | 3.75 | 3.38 | 4.19 | 2.75 | 3.81 | 3.31 | 0.06 | 0.25 | 0.19 |
| 3 | 5 | 3.31 | 4.62 | 4.25 | 5.06 | 3.38 | 4.69 | 4.19 | 0.06 | 0.25 | 0.19 |
| 3 1/2 | 5.5 | 3.81 | 5.12 | 4.75 | 5.56 | 3.88 | 5.19 | 4.69 | 0.06 | 0.25 | 0.19 |
| 4 | 6.19 | 4.31 | 5.69 | 5.19 | 6.25 | 4.38 | 5.75 | 5.12 | 0.06 | 0.25 | 0.19 |
| 5 | 7.31 | 5.38 | 6.81 | 6.31 | 7.38 | 5.44 | 6.88 | 6.25 | 0.06 | 0.25 | 0.19 |
| 6 | 8.5 | 6.38 | 8 | 7.5 | 8.56 | 6.44 | 8.06 | 7.44 | 0.06 | 0.25 | 0.19 |
| 8 | 10.62 | 8.38 | 10 | 9.38 | 10.69 | 8.44 | 10.06 | 9.31 | 0.06 | 0.25 | 0.19 |
| 10 | 12.75 | 10.5 | 12 | 11.25 | 12.81 | 10.56 | 12.06 | 11.19 | 0.06 | 0.25 | 0.19 |
| 12 | 15 | 12.5 | 14.25 | 13.5 | 15.06 | 12.56 | 14.31 | 13.44 | 0.06 | 0.25 | 0.19 |
| 14 | 16.25 | 13.75 | 15.5 | 14.75 | 16.31 | 13.81 | 15.56 | 14.69 | 0.06 | 0.25 | 0.19 |
| 16 | 18.5 | 15.75 | 17.62 | 16.75 | 18.56 | 15.81 | 17.69 | 16.69 | 0.06 | 0.25 | 0.19 |
| 18 | 21 | 17.75 | 20.12 | 19.25 | 21.06 | 17.81 | 20.19 | 19.19 | 0.06 | 0.25 | 0.19 |
| 20 | 23 | 19.75 | 22 | 21 | 23.06 | 19.81 | 22.06 | 20.94 | 0.06 | 0.25 | 0.19 |
| 24 | 27.25 | 23.75 | 26.25 | 25.25 | 27.31 | 23.81 | 26.31 | 25.19 | 0.06 | 0.25 | 0.19 |

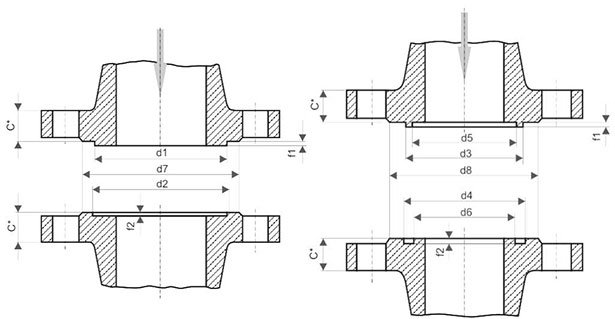

Large Male Female Flange Dimensions
| DN | d1 | d2 | d3 | d4 | d5 | d6 | d7 | d8 | f1 | f2 |
| ½” | 1,38 (35,1) |
1,44 (36,6) |
1,38 (35,1) |
1,44 (36,6) |
1,00 (25,4) |
0,94 (23,9) |
1,81 (46,0) |
1,75 (44,5) |
0,25 (6,4) |
0,19 (4,8) |
| ¾” | 1,69 (42,9) |
1,75 (44,5) |
1,69 (42,9) |
1,75 (44,5) |
1,31 (33,3) |
1,25 (31,8) |
2,12 (53,8) |
2,06 (52,3) |
0,25 (6,4) |
0,19 (4,8) |
| 1″ | 2,00 (50,8) |
2,06 (52,3) |
1,88 (47,7) |
1,94 (49,3) |
1,50 (38,1) |
1,44 (36,6) |
2,44 (62,0) |
2,25 (57,2) |
0,25 (6,4) |
0,19 (4,8) |
| 1¼” | 2,50 (63,5) |
2,56 (65,0) |
2,25 (57,2) |
2,31 (58,7) |
1,88 (47,8) |
1,81 (46,0) |
2,94 (74,7) |
2,62 (66,6) |
0,25 (6,4) |
0,19 (4,8) |
| 1½” | 2,88 (73,2) |
2,94 (74,7) |
2,50 (63,5) |
2,56 (65,0) |
2,12 (53,8) |
2,06 (52,3) |
3,31 (84,1) |
2,88 (73,2) |
0,25 (6,4) |
0,19 (4,8) |
| 2″ | 3,62 (92,0) |
3,69 (93,7) |
3,25 (82,6) |
3,31 (84,1) |
2,88 (73,0) |
2,81 (71,4) |
4,06 (103,1) |
3,62 (92,0) |
0,25 (6,4) |
0,19 (4,8) |
| 2½” | 4,12 (104,6) |
4,19 (106,4) |
3,75 (95,2) |
3,81 (96,8) |
3,38 (85,8) |
3,31 (84,1) |
4,56 (115,8) |
4,12 (104,6) |
0,25 (6,4) |
0,19 (4,8) |
| 3″ | 5,00 (127,0) |
5,06 (128,5) |
4,62 (117,5) |
4,69 (119,1) |
4,25 (108,0) |
4,19 (106,4) |
5,44 (138,2) |
5,00 (127,0) |
0,25 (6,4) |
0,19 (4,8) |
| 4″ | 6,19 (157,2) |
6,25 (158,8) |
5,69 (144,5) |
5,75 (146,1) |
5,19 (131,8) |
5,12 (130,0) |
6,62 (168,1) |
6,19 (157,2) |
0,25 (6,4) |
0,19 (4,8) |
| 5″ | 7,31 (185,7) |
7,38 (187,5) |
6,81 (173,0) |
6,88 (174,8) |
6,31 (160,3) |
6,25 (158,8) |
7,75 (196,9) |
7,31 (185,7) |
0,25 (6,4) |
0,19 (4,8) |
| 6″ | 8,50 (215,9) |
8,56 (217,5) |
8,00 (203,2) |
8,06 (204,7) |
7,50 (190,5) |
7,44 (189,0) |
8,94 (227,0) |
8,50 (215,9) |
0,25 (6,4) |
0,19 (4,8) |
| 8″ | 10,62 (269,8) |
10,69 (271,5) |
10,00 (254,0) |
10,06 (255,5) |
9,38 (238,3) |
9,31 (236,5) |
11,06 (281,0) |
10,62 (269,8) |
0,25 (6,4) |
0,19 (4,8) |
| 10″ | 12,75 (323,5) |
12,81 (325,4) |
12,00 (304,8) |
12,06 (306,3) |
11,25 (285,8) |
11,19 (284,2) |
13,19 (335,0) |
12,75 (323,5) |
0,25 (6,4) |
0,19 (4,8) |
| 12″ | 15,00 (381,0) |
15,06 (382,5) |
14,25 (362,0) |
14,31 (363,5) |
13,50 (342,9) |
13,44 (341,4) |
15,44 (392,2) |
15,00 (381,0) |
0,25 (6,4) |
0,19 (4,8) |
| 14″ | 16,25 (412,8) |
16,31 (414,3) |
15,50 (393,7) |
15,56 (395,2) |
14,75 (374,7) |
14,69 (373,1) |
16,69 (423,9) |
16,25 (412,8) |
0,25 (6,4) |
0,19 (4,8) |
| 16″ | 18,50 (469,9) |
18,56 (471,5) |
17,62 (447,6) |
17,69 (449,3) |
16,75 (425,5) |
16,69 (423,9) |
18,94 (481,0) |
18,50 (469,9) |
0,25 (6,4) |
0,19 (4,8) |
| 18″ | 21,00 (533,4) |
21,06 (535,0) |
20,12 (511,0) |
20,19 (512,8) |
19,25 (489,0) |
19,19 (487,4) |
21,44 (544,6) |
21,00 (533,4) |
0,25 (6,4) |
0,19 (4,8) |
| 20″ | 23,00 (584,2) |
23,06 (585,8) |
22,00 (558,8) |
22,06 (560,3) |
21,00 (533,4) |
20,94 (531,9) |
23,44 (595,4) |
23,00 (584,2) |
0,25 (6,4) |
0,19 (4,8) |
| 24″ | 27,25 (692,2) |
27,31 (693,7) |
26,25 (666,8) |
26,31 (668,3) |
25,25 (641,4) |
25,19 (639,8) |
27,69 (703,3) |
27,25 (692,2) |
0,25 (6,4) |
0,19 (4,8) |
