Inconel 625 Industrial Fittings – Buttweld, Forged & Outlet Range with Flanges. ISO 9001:2015 Certified | Worldwide Delivery.
With a reputation for delivering high-performance materials for extreme service conditions, we provide a wide portfolio of nickel alloys, stainless steels, and corrosion-resistant products. One of our flagship offerings is Inconel 625, a nickel-chromium-molybdenum alloy designed for outstanding strength and corrosion resistance in severe environments. Its balanced composition, including nickel (~58%), chromium (~20–23%), molybdenum, and niobium, gives it excellent mechanical properties and protection against a wide range of corrosive agents, making it ideal for aerospace, marine, nuclear, and chemical industries.
Our Inconel 625 product line includes a broad selection of flanges (weld neck, blind, slip-on, lap joint, threaded, socket weld), buttweld fittings (long/short radius elbows, tees, concentric/eccentric reducers, caps), and forged fittings (socket weld and threaded elbows, tees, unions, couplings). We also offer specialty branch fittings such as weldolets, sockolets, and threadolets for high-integrity piping connections. All products are precision-manufactured following international standards like ASTM B564, B366 and dimensional codes including ASME/ANSI B16.5, B16.9, and B16.11, ensuring consistent quality and fitment.
Inconel 625 provides exceptional mechanical strength, with a minimum tensile strength of 827 MPa (120 ksi) and yield strength of 414 MPa (60 ksi). It remains structurally stable across a broad temperature range — from cryogenic conditions to 982°C (1800°F). The alloy’s resistance to pitting, crevice corrosion, and stress corrosion cracking in seawater and aggressive chemicals is outstanding. We offer Inconel 625 items in sizes from ½” NB to 48” NB, with pressure classes including 150# to 2500# for flanges and 3000#, 6000#, 9000# for forged fittings. Every product is quality-checked under a strict ISO 9001:2015 certified quality system, including PMI testing, hydro testing, and ultrasonic inspection.
Inconel 625 is widely used in offshore platforms, exhaust systems, nuclear reactor components, acid processing equipment, and aerospace engines due to its high strength, weldability, and resistance to oxidizing and reducing environments. Key benefits include resistance to chloride-ion stress corrosion, long service life under thermal cycling, excellent fatigue strength, and weldability without post-weld heat treatment. The alloy’s performance in both oxidizing and reducing environments makes it highly reliable for mission-critical operations where durability and safety are non-negotiable.
Inconel 625 Flanges, WNRF, SORF, Blind Flanges (RF/FF), Elbows, Tees, Reducers, Socket Weld & Threaded Forged Fittings, Weldolet, Sockolet, Threadolet – Manufactured as per ASME, DIN, MSS Standards – Pressure Class 150 to 2500#, Series A/B.
Technical Index
Industrial Inconel 625 Specifications
| Material Grade | Inconel 625 / UNS N06625 / W.Nr. 2.4851 |
|---|---|
| Available Product Types | Flanges, Buttweld Fittings, Forged Fittings, Olets |
| Flanges Size Range | ½” (15 NB) to 24” (600 NB) |
| Class | 150, 300, 600, 900, 1500, 2500, PN6 to PN64 |
| Standard Specifications | ASTM B564, B366 / ASME SB564, SB366 |
| Standards | ASME B16.5, B16.47 Series A & B, B16.48, EN 1092-1, DIN, ISO 7005-1, MSS SP-44, API 605 |
| Types | Weld Neck, Slip-On, Socket Weld, Threaded, Blind, Lap Joint, RTJ, Long Weld Neck, Reducing, Expander, Orifice, Spectacle Blind, Spacer, Paddle Blank, RF, FF |

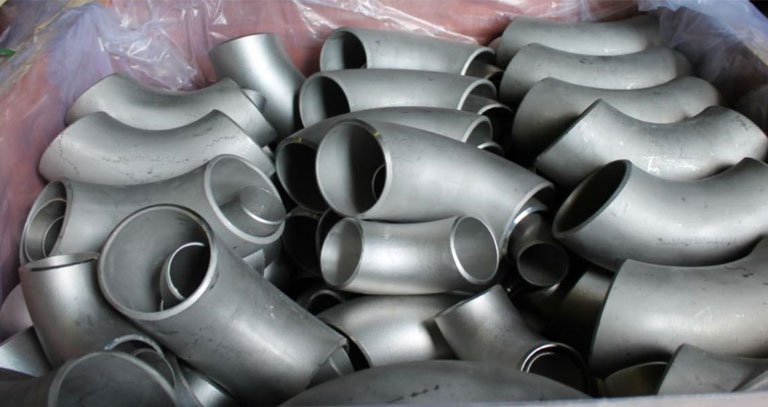

| Buttweld Fittings Size | ½” NB to 12” NB (seamless), ½” NB to 24” NB (welded) |
| Wall Thickness | SCH 10 to XXS |
| Standards | ASME B16.9, MSS SP-75, EN 10253, DIN 2605/2615/2616 |
| Types | Elbow (90°, 45°, LR, SR), Tee (Equal, Reducing), Reducer (Concentric, Eccentric), End Cap, Stub Ends |

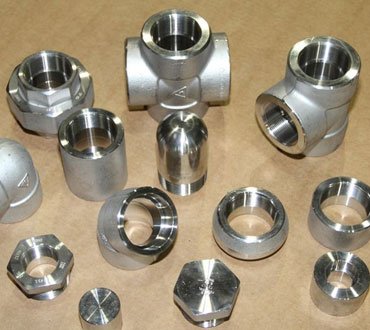

| Forged Fittings Size | ½” NB to 4” NB (Socket Weld & Threaded) |
| Class | 2000, 3000, 6000, 9000 (psi) |
| Standards | ASME B16.11, MSS SP-83, MSS SP-95 |
| Types | 90°/45° Elbow, Tee, Cross, Couplings, Unions, Caps, Hex Bushings, Plugs, Bosses, Nipples, Swages |
| Olets (Outlet Fittings) Size | ½” to 24” Branch | Run Pipe up to 36” |
| Class | 3000#, 6000#, 9000# |
| Standards | MSS SP-97, ASME B16.11, ANSI, DIN, JIS (Custom) |
| Types | Weldolet, Sockolet, Threadolet, Elbolet, Latrolet, Nipolet, Sweepolet, Brazolet |
| End Connection Types | Buttweld, Socket Weld, Threaded (NPT/BSP), Flanged (RF, FF, RTJ) |
| Testing & Certifications | EN 10204 3.1/3.2, NACE MR0175, PMI, Ultrasonic, Radiography, MPI |
| Surface Finish Options | Pickled, Passivated, Bright Annealed, Coated (Zinc, Black) |
| Manufacturing Capabilities | Hot/Cold Forming, CNC Machining, Forging, Induction Bending, Fabrication |
| Raw Material Sources | USA, Germany, Japan, South Korea |
| Export Destinations | USA, UAE, Saudi Arabia, Qatar, Europe, South Africa, Singapore, Malaysia |
Industrial Inconel 625 Standards
| ANSI/ASME B16.47 Flanges | ANSI/ASME B16.36 Flanges | ANSI/ASME B16.5 Flanges | Pr. EN1902-1 Flanges |
| DIN Flanges | JIS Flanges | BS 4504 Flanges | BS 10 Flanges |
| MSS SP-44 Flanges | JIS B2220 Flanges | KS B1503 Flanges | UNI Flanges |
| SABS/SANS 1123 Flanges | AS 2129, AS 4087 Flanges | ISO 9624, ISO 7005-1 Flanges | AWWA Flanges Standard |
| GOST Standard Flanges | API Flanges | AS/ANZ 4331.1 Flanges | Series A Flange |
| Series B Flange | SAE J518 Flanges | GB Flange | Norwegian Standard Flanges |
| ASME B16.11 – Forged Steel Fittings, Socket-Welding and Threaded | BS 3799 – Screwed and Socket-Welding for the Petroleum Industry | MSS SP-79 – Socket-Welding Reducer Inserts | MSS SP-83 – Class 3000 Steel Pipe Unions, Socket-Welding and Threaded |
| MSS SP-95 – Swage(d) Nipples and Bull Plugs | MSS SP-97 – Integrally Reinforced Forged Branch Outlet Fittings | DIN 2986 – Threaded Fittings | DIN 2999 – Pipe Threads for Fittings (British Standard Pipe Threads) |
| ISO 49 – Malleable Iron Fittings, Threaded | ISO 7/1 – Pipe Threads Where Pressure-tight Joints Are Made on the Threads | EN 10241 – Steel Threaded Pipe Fittings | JIS B2316 – Japanese standard for forged pipe fittings. |
| ANSI/ASME B16.9 – Factory-Made Wrought Steel Buttwelding Fittings | ANSI/ASME B16.28 – Wrought Steel Short Radius Elbows and Returns | ANSI/ASME B16.25 – Buttwelding Ends(beval standards) | MSS SP-43 – Wrought and fabricated Butt welding Fittings for Light Wall Applications |
| MSS SP-75 – High Test Wrought Butt welding Fittings | DIN 2616 – Butt welding Pipe Fittings: Reducers | DIN 2617 – Butt welding Pipe Fittings: Caps | DIN28011 – Dished Ends(used in pressure vessels) |
| EN10253-1 Butt-welding Pipe Fittings | EN10253-2 Butt-welding Pipe Fittings |
Inconel 625 International Standards
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | BS | EN | AFNOR |
|---|---|---|---|---|---|---|---|
| Inconel 625 | 2.4856 | N06625 | NCF 625 | ХН75МБТЮ | NA 21 | NiCr23Fe | NC22DNB4MNiCr22Mo9Nb |
Inconel 625 Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
|---|---|---|---|---|---|---|---|---|
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
Inconel 625 Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
Inconel 625 Types
Inconel 625 Industries & Applications
Inconel 625 Flange Size Chart
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| 15mm (1/2″) | ||||||
| ANSI B16.5 | ANSI 150 | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 | 121 | 83 | 4 | 19 | 22 | |
| 20mm (3/4″) | ||||||
| ANSI B16.5 | ANSI 150 | 98 | 70 | 4 | 13 | 16 |
| ANSI 300 | 117 | 83 | 4 | 16 | 19 | |
| ANSI 600 | 117 | 83 | 4 | 16 | 19 | |
| ANSI 900 | 130 | 89 | 4 | 19 | 22 | |
| ANSI 1500 | 130 | 89 | 4 | 19 | 22 | |
| 25mm (1″) | ||||||
| ANSI B16.5 | ANSI 150 | 110 | 79 | 4 | 13 | 16 |
| ANSI 300 | 125 | 89 | 4 | 16 | 19 | |
| ANSI 600 | 125 | 89 | 4 | 16 | 19 | |
| ANSI 900 | 102 | 4 | 22 | 25 | ||
| ANSI 1500 | 102 | 4 | 22 | 25 | ||
| 32mm (1 1/4″) | ||||||
| ANSI B16.5 | ANSI 150 | 117 | 89 | 4 | 13 | 16 |
| ANSI 300 | 133 | 98 | 4 | 16 | 19 | |
| ANSI 600 | 133 | 98 | 4 | 16 | 19 | |
| ANSI 900 | 159 | 111 | 4 | 22 | 25 | |
| ANSI 1500 | 159 | 111 | 4 | 22 | 25 | |
| 40mm (1 1/2″) | ||||||
| ANSI B16.5 | ANSI 150 | 127 | 98 | 4 | 13 | 16 |
| ANSI 300 | 156 | 114 | 4 | 19 | 22 | |
| ANSI 600 | 156 | 114 | 4 | 19 | 22 | |
| ANSI 900 | 178 | 124 | 4 | 25 | 29 | |
| ANSI 1500 | 178 | 124 | 4 | 25 | 29 | |
| 50mm (2″) | ||||||
| ANSI B16.5 | ANSI 150 | 152 | 121 | 4 | 16 | 19 |
| ANSI 300 | 165 | 127 | 8 | 16 | 19 | |
| ANSI 600 | 165 | 127 | 8 | 16 | 19 | |
| ANSI 900 | 216 | 165 | 8 | 22 | 25 | |
| ANSI 1500 | 216 | 165 | 8 | 22 | 25 | |
| 65mm (2 1/2″) | ||||||
| ANSI B16.5 | ANSI 150 | 178 | 140 | 4 | 16 | 19 |
| ANSI 300 | 191 | 149 | 8 | 19 | 22 | |
| ANSI 600 | 191 | 149 | 8 | 19 | 22 | |
| ANSI 900 | 244 | 191 | 8 | 22 | 25 | |
| ANSI 1500 | 244 | 191 | 8 | 25 | 29 | |
| 80mm (3″) | ||||||
| ANSI B16.5 | ANSI 150 | 191 | 152 | 4 | 16 | 19 |
| ANSI 300 | 210 | 168 | 8 | 19 | 22 | |
| ANSI 600 | 210 | 168 | 8 | 19 | 22 | |
| ANSI 900 | 241 | 192 | 8 | 22 | 25 | |
| ANSI 1500 | 267 | 203 | 8 | 29 | 32 | |
| 100mm (4″) | ||||||
| ANSI B16.5 | ANSI 150 | 229 | 191 | 8 | 16 | 19 |
| ANSI 300 | 254 | 200 | 8 | 19 | 22 | |
| ANSI 600 | 273 | 216 | 8 | 22 | 25 | |
| ANSI 900 | 292 | 235 | 8 | 29 | 32 | |
| ANSI 1500 | 311 | 241 | 8 | 32 | 35 | |
| 125mm (5″) | ||||||
| ANSI B16.5 | ANSI 150 | 254 | 216 | 8 | 19 | 22 |
| ANSI 300 | 279 | 235 | 8 | 19 | 22 | |
| ANSI 600 | 330 | 267 | 8 | 25 | 29 | |
| ANSI 900 | 349 | 279 | 8 | 32 | 35 | |
| ANSI 1500 | 375 | 292 | 8 | 38 | 41 | |
| 150mm (6″) | ||||||
| ANSI B16.5 | ANSI 150 | 279 | 241 | 8 | 19 | 22 |
| ANSI 300 | 318 | 270 | 12 | 19 | 22 | |
| ANSI 600 | 356 | 292 | 12 | 25 | 29 | |
| ANSI 900 | 381 | 318 | 12 | 29 | 32 | |
| ANSI 1500 | 394 | 318 | 12 | 35 | 38 | |
| 200mm (8″) | ||||||
| ANSI B16.5 | ANSI 150 | 343 | 298 | 8 | 19 | 22 |
| ANSI 300 | 381 | 330 | 12 | 19 | 22 | |
| ANSI 600 | 419 | 349 | 12 | 29 | 32 | |
| ANSI 900 | 470 | 394 | 12 | 35 | 38 | |
| ANSI 1500 | 483 | 394 | 12 | 41 | 44 | |
| 250mm (10″) | ||||||
| ANSI B16.5 | ANSI 150 | 406 | 362 | 12 | 22 | 25 |
| ANSI 300 | 445 | 387 | 16 | 25 | 29 | |
| ANSI 600 | 508 | 432 | 16 | 32 | 35 | |
| ANSI 900 | 546 | 470 | 16 | 35 | 38 | |
| ANSI 1500 | 584 | 483 | 12 | 41 | 51 | |
| 300mm (12″) | ||||||
| ANSI B16.5 | ANSI 150 | 483 | 432 | 12 | 22 | 25 |
| ANSI 300 | 521 | 451 | 16 | 29 | 32 | |
| ANSI 600 | 559 | 489 | 20 | 32 | 35 | |
| ANSI 900 | 610 | 533 | 20 | 35 | 38 | |
| ANSI 1500 | 673 | 571 | 16 | 51 | 54 | |
| 350mm (14″) | ||||||
| ANSI B16.5 | ANSI 150 | 533 | 476 | 12 | 25 | 29 |
| ANSI 300 | 584 | 514 | 20 | 29 | 32 | |
| ANSI 600 | 603 | 527 | 20 | 38 | 41 | |
| ANSI 900 | 641 | 559 | 20 | 38 | 41 | |
| ANSI 1500 | 749 | 635 | 16 | 57 | 60 | |
| 400mm (16″) | ||||||
| ANSI B16.5 | ANSI 150 | 597 | 540 | 16 | 25 | 29 |
| ANSI 300 | 648 | 572 | 20 | 32 | 35 | |
| ANSI 600 | 686 | 603 | 20 | 38 | 41 | |
| ANSI 900 | 705 | 616 | 20 | 41 | 44 | |
| ANSI 1500 | 826 | 705 | 16 | 64 | 67 | |
| 450mm (18″) | ||||||
| ANSI B16.5 | ANSI 150 Flange | 635 | 578 | 16 | 29 | 32 |
| ANSI 300 Flange | 711 | 629 | 24 | 32 | 35 | |
| ANSI 600 Flange | 743 | 654 | 20 | 41 | 44 | |
| ANSI 900 Flange | 787 | 686 | 20 | 48 | 51 | |
| ANSI 1500 Flange | 914 | 775 | 16 | 70 | 73 | |
| 500mm (20″) | ||||||
| ANSI B16.5 | ANSI 150 Flange | 699 | 635 | 20 | 29 | 32 |
| ANSI 300 Flange | 775 | 686 | 24 | 32 | 35 | |
| ANSI 600 Flange | 813 | 724 | 24 | 41 | 44 | |
| ANSI 900 Flange | 857 | 749 | 20 | 51 | 54 | |
| ANSI 1500 Flange | 984 | 832 | 16 | 76 | 79 | |
| 600mm (24″) | ||||||
| ANSI B16.5 | ANSI 150 Flanges | 813 | 749 | 20 | 32 | 35 |
| ANSI 300 Flanges | 914 | 813 | 24 | 38 | 41 | |
| ANSI 600 Flanges | 940 | 838 | 24 | 48 | 51 | |
| ANSI 900 Flanges | 1041 | 902 | 20 | 64 | 67 | |
| ANSI 1500 Flanges | 1168 | 991 | 16 | 89 | 92 | |
Inconel 625 Buttweld Fittings Dimensions
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | Con reducer | Ecc reducer | Reducing tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50×25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50×40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100×50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100×80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150×80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150×100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200×100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200×150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Inconel 625 Forged Fittings Dimensions
| Nominal Pipe Size | Centre to End Elbows, Tee, Crosses A | Centre to End 45º Elbows C | Outside Diameter of Band H | Minimum Wall Thickness G | Lengths of Thread Min | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | B | L2 | |
| 1/8 | 13/16 | 13/16 | 31/32 | 11/16 | 11/16 | 3/4 | 7/8 | 7/8 | 1 | .125 | .125 | .250 | .25 | .2639 |
| 1/4 | 13/16 | 31/32 | 1-1/8 | 11/16 | 3/4 | 7/8 | 7/8 | 1 | 1-5/16 | .125 | .130 | .260 | .32 | .4018 |
| 3/8 | 3/32 | 1-1/8 | 1-5/16 | 3/4 | 7/8 | 1 | 1 | 1-5/16 | 1-1/2 | .125 | .138 | .275 | .36 | .4078 |
| 1/2 | 1-1/8 | 1-5/16 | 1-1/2 | 7/8 | 1 | 1-1/8 | 1-5/16 | 1-1/2 | 1-13/16 | .125 | .161 | .321 | .43 | .5337 |
| 3/4 | 1-5/16 | 1-1/2 | 1-3/4 | 1 | 1-1/8 | 1-5/16 | 1-1/2 | 1-13/16 | 2-3/16 | .123 | .168 | .336 | .50 | .5457 |
| 1 | 1-1/2 | 1-3/4 | 2 | 1-1/8 | 1-5/16 | 1-3/8 | 1-13/16 | 2-3/16 | 2-7/16 | .145 | .196 | .391 | .58 | .6828 |
| 1-1/4 | 1-3/4 | 2 | 2-3/8 | 1-15/16 | 1-3/8 | 1-11/16 | 2-3/16 | 2-7/16 | 2-31/32 | .153 | .208 | .417 | .67 | .7068 |
| 1-1/2 | 2 | 2-3/8 | 2-1/2 | 1-3/8 | 1-11/16 | 1-23/32 | 2-7/16 | 2-31/32 | 3-5/16 | .158 | .218 | .436 | .70 | .7235 |
| 2 | 2-3/8 | 2-1/2 | 3-3/4 | 1-11/16 | 1-23/32 | 2-1/16 | 2-31/32 | 3-5/16 | 4 | .168 | .238 | .476 | .75 | .7565 |
| 2-1/2 | 3 | 3-1/4 | 3-3/4 | 2-1/16 | 2-1/16 | 2-1/2 | 3-5/8 | 4 | 4 | .221 | .301 | .602 | .932 | 1.138 |
| 3 | 3-3/8 | 3-3/4 | 4-3/16 | 2-1/2 | 2-1/2 | 3-1/8 | 4-5/16 | 4-3/4 | 4-3/4 | .236 | .327 | .655 | 1.016 | 1.200 |
| 4 | 3-3/16 | 4-1/2 | 4-1/2 | 3-1/8 | 3-1/8 | 3-1/8 | 5-3/4 | 5 | 6 | .258 | .368 | .735 | 1.094 | 1.300 |
| Nominal Pipe Size | End to End Couplings W | End to End Caps H |
Outside Diameter D |
End Wall Thickness G Min |
Length of Thead Min |
||||
|---|---|---|---|---|---|---|---|---|---|
| 3000# & 6000# |
3000# | 6000# | 3000# | 6000# | 3000# | 6000# | B | L2 | |
| 1/8 | 1-1/4 | 3/4 | 5/8 | 7/8 | 3/16 | .25 | .2639 | ||
| 1/4 | 1-3/8 | 1 | 1-1/16 | 3/4 | 1 | 3/16 | 1/4 | .32 | .4018 |
| 3/8 | 1-1/2 | 1 | 1-1/16 | 7/8 | 1-1/4 | 3/16 | 1/4 | .36 | .4078 |
| 1/2 | 1-7/8 | 1-1/4 | 1-5/16 | 1-1/8 | 1-1/2 | 1/4 | 5/16 | .43 | .5337 |
| 3/4 | 2 | 1-7/16 | 1-1/2 | 1-3/8 | 1-3/4 | 1/4 | 5/16 | .50 | .5457 |
| 1 | 2-3/8 | 1-5/8 | 1-11/16 | 1-3/4 | 2-1/4 | 3/8 | 7/16 | .58 | .6828 |
| 1-1/4 | 2-5/8 | 1-3/4 | 1-13/16 | 2-1/4 | 2-1/2 | 3/8 | 7/16 | .67 | .7068 |
| 1-1/2 | 3-1/8 | 1-3/4 | 1-7/8 | 2-1/2 | 3 | 7/16 | 1/2 | .70 | .7235 |
| 2 | 3-3/8 | 1-7/8 | 2 | 3 | 3-5/8 | 1/2 | 5/8 | .75 | .7565 |
| 2-1/2 | 3-5/8 | 2-3/8 | 2-1/2 | 3-5/8 | 4-1/4 | 5/8 | 3/4 | .932 | 1.138 |
| 3 | 4-1/4 | 2-9/16 | 2-11/16 | 4-1/4 | 5 | 3/4 | 7/8 | 1.016 | 1.200 |
| 4 | 4-3/4 | 2-11/16 | 2-15/16 | 5-1/2 | 6-1/4 | 7/8 | 1-1/8 | 1.094 | 1.300 |
| Nominal Pipe Size | Thead
Length (min) A |
Plugs Square Head | Plugs Round Head | Hexagon Plugs & Bushings |
||||
|---|---|---|---|---|---|---|---|---|
| Height of Square (min) B |
Width Flats (min) C |
Nominal Diameter of Head E | Length (min) D |
Width Flats (min) F |
Hexagon Height min | |||
| Bushings G | Plug H |
|||||||
| 1/8 | 3/8 | 1/4 | 9/32 | 13/32 | 1-3/8 | 7/16 | – | 1/4 |
| 1/4 | 7/16 | 1/4 | 3/8 | 17/32 | 1-5/8 | 5/8 | 1/8 | 1/4 |
| 3/8 | 1/2 | 5/16 | 7/16 | 11/16 | 1-5/8 | 11/16 | 5/32 | 5/16 |
| 1/2 | 9/16 | 3/8 | 9/16 | 27/32 | 1-3/4 | 7/8 | 3/16 | 5/16 |
| 3/4 | 5/8 | 7/16 | 5/8 | 1-1/16 | 1-3/4 | 1-1/16 | 7/32 | 3/8 |
| 1 | 3/4 | 1/2 | 13/16 | 1-5/16 | 2 | 1-3/8 | 1/4 | 3/8 |
| 1-1/4 | 13/16 | 9/16 | 15/16 | 1-11/16 | 2 | 1-3/4 | 9/32 | 9/16 |
| 1-1/2 | 13/16 | 5/8 | 1-1/8 | 1-29/32 | 2 | 2 | 5/16 | 5/8 |
| 2 | 7/8 | 11/16 | 1-5/16 | 2-3/8 | 2-1/2 | 2-1/2 | 11/32 | 11/16 |
| 2-1/2 | 1-1/16 | 3/4 | 1-1/2 | 2-7/8 | 2-3/4 | 3 | 3/8 | 3/4 |
| 3 | 1-1/8 | 13/16 | 1-11/16 | 3-1/2 | 2-3/4 | 3-1/2 | 13/32 | 13/16 |
| 3-1/2 | 1-3/16 | 7/8 | 1-7/8 | 4 | 3 | 4-1/8 | 7/16 | 7/8 |
| 4 | 1-1/4 | 1-1/4 | 2-1/2 | 4-1/2 | 3 | 4-5/8 | 1/2 | 1-1/4 |
Major Industrial Inconel 625 Fittings & Flanges Export Countries
United Arab Emirates (UAE), Jordan, Bahrain, Kuwait, Oman, Qatar, Saudi Arabia, United States of America (USA), Singapore, Malaysia, Azerbaijan, Armenia, Georgia, Egypt, Algeria, Nigeria, South Africa, Kenya, Morocco, Ethiopia, Ghana, Tanzania, Sudan, Uganda, Angola.
