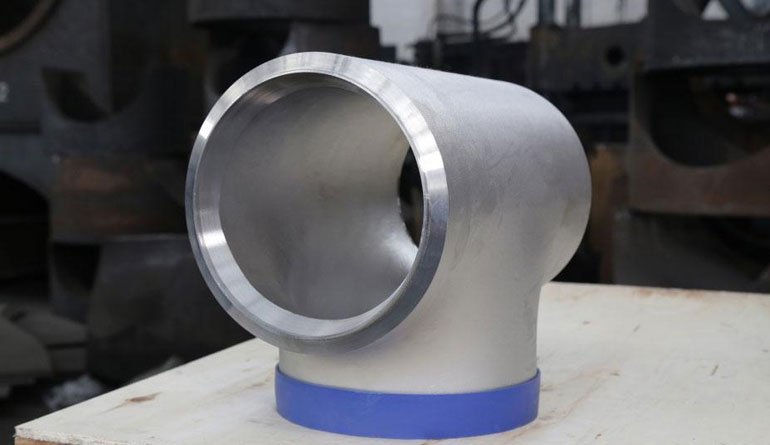

Buttweld Tees – Equal, Reducing & Lateral Tees for industrial pipelines – seamless & welded, beveled ends as per ASME B16.9, MSS-SP-75, DIN 2615. Available in SS304/316, ASTM A234 WPB, Duplex, Inconel & more, Ready stock available for bulk purchase.
Bhavani Industries is a leading manufacturer and supplier of high-performance Buttweld Tees, designed for use in a wide range of industrial piping systems. A buttweld tee is a critical fitting that allows for the diversion, distribution, or combination of fluid flow at a 90-degree intersection. We manufacture and supply various types of tees, including Equal Tees, Reducing Tees, and Lateral Tees, each suited for specific flow configurations and process requirements. Equal tees have all three outlets of the same size and are commonly used to divide flow evenly, while reducing tees connect pipes of different diameters, making them ideal for pressure or flow adjustments. Lateral tees, which branch off at a 45-degree angle, are often used in applications where smoother flow transitions are required or when space constraints limit traditional 90-degree branches.
These tees are manufactured in sizes ranging from ½” to 48” (DN15 to DN1200) and wall thicknesses from SCH 5 to SCH 160 / XXS, covering low-pressure to high-pressure service conditions. All buttweld tees are produced in accordance with international standards such as ASME B16.9, ASTM A403, ASTM A234, MSS-SP-75, and EN 10253, ensuring consistency in wall thickness, dimensional accuracy, and structural integrity. We use various forming processes, including cold forming, hot forming, hydraulic bulging, and machining, depending on material type and project specifications. Bevel ends are finished as per ANSI B16.25 to facilitate seamless welding during installation.
Bhavani Industries manufactures buttweld tees using high-grade materials, including Stainless Steel (SS 304, 304L, 316, 316L, 321, 347, 904L), Carbon Steel (ASTM A234 WPB, WPC), Alloy Steel (WP5, WP11, WP22, WP91), and Nickel Alloys (Inconel 600/625, Monel 400, Hastelloy C276, Alloy 20). Each fitting undergoes a comprehensive quality assurance process involving Positive Material Identification (PMI), Ultrasonic Testing (UT), Radiographic Testing (RT), Hydrostatic Testing, and optional Third-Party Inspection to meet stringent application and industry standards. Our tees are widely used in oil & gas pipelines, chemical processing plants, petrochemical refineries, power generation units, water treatment facilities, and offshore structures, offering long-term reliability, corrosion resistance, and mechanical performance in critical flow control systems.
Export-Ready Equal, Reducing & Lateral Tees – Available in SS, CS, Alloy Steel, Duplex. Seamless and welded, Sizes from 1/2" to 48", SCH 10 to XXS, as per ASME B16.9 / MSS-SP-75. Large-scale supply for global markets.
Technical Index
Industrial Equal Tee Standard Specifications
| Buttweld Tee Size Availability | 1/2″～48″ NB (Seamless, Welded, and Fabricated) |
|---|---|
| Types | Equal Tee, Reducing Tee, Lateral Tee |
| Wall Thickness | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and others |
| Dimensions | ASME B16.9, MSS-SP-75, ANSI/ASME B16.28 (where applicable) |
| DIN | DIN 2615, DIN 2616, DIN 2617 (where applicable) |
| BS | BS EN 10253, BS 1640 (where applicable) |
| Material Grades | Stainless Steel (SS304, SS316), Carbon Steel (ASTM A234 WPB), Alloy Steel, Duplex, Super Duplex, Inconel |
| Coating / Surface Treatment | Black Paint, Anti-rust Coating, Galvanized (Hot/Cold Dip), Pickled, Passivated |
| Ends | Beveled (BW) Ends as per ASME B16.25, Plain Ends, Flanged (on request) |
| Tolerance | As per ASME B16.9 / customer specification |
| Testing | PMI, Hydro Test, UT, RT, Visual, Dimensional Inspection, Hardness Test (on request) |
| Certification | EN 10204 3.1 / 3.2, ISO 9001:2015, PED Certified (on request) |
| Material Sourcing Regions | India, Japan, USA, Europe, South Korea |
| Global Export Markets | UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, USA, Canada, Singapore, Malaysia, Nigeria, Egypt, South Africa, Kenya, Turkey, Kazakhstan, Indonesia, Brazil, Australia |
Industrial Buttweld Tees Standards
| ANSI/ASME B16.9 – Factory-Made Wrought Steel Buttwelding Fittings | ANSI/ASME B16.28 – Wrought Steel Short Radius Elbows and Returns | ANSI/ASME B16.25 – Buttwelding Ends(beval standards) | MSS SP-43 – Wrought and fabricated Butt welding Fittings for Light Wall Applications |
| MSS SP-75 – High Test Wrought Butt welding Fittings | DIN 2616 – Butt welding Pipe Fittings: Reducers | DIN 2617 – Butt welding Pipe Fittings: Caps | DIN28011 – Dished Ends(used in pressure vessels) |
| EN10253-1 Butt-welding Pipe Fittings(Non Alloy Steels) | EN10253-2 Butt-welding Pipe Fittings(Stainless/Alloy Steels) |
Buttweld Pipe Tee Material Grades and Standards
| Stainless Steel Equal Tee / Reducing Tee / Lateral Tee | ASTM A403 WP304/304L, WP316/316L, ASTM A774(Welded):DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
|---|---|
| Duplex Steel Equal Tee / Reducing Tee / Lateral Tee | ASTM A 815 / ASME SA 815 UNS S31803, S32205. Werkstoff No. 1.4462 |
| Super Duplex Steel Equal Tee / Reducing Tee / Lateral Tee | ASTM A 815 / ASME SA 815 UNS S32750, S32950. Werkstoff No. 1.4410 |
| Carbon Steel Equal Tee / Reducing Tee / Lateral Tee | ASTM A234 / ASME SA234 WPB , WPBW, ASTM A860 WPHY 42, 46, 52, 60, 65, 70. |
| Alloy Steel Equal Tee / Reducing Tee / Lateral Tee | ASTM A234 / ASME SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| High Nickel Alloy Equal Tee / Reducing Tee / Lateral Tee | ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. |
| Other Specialty Equal Tee / Reducing Tee / Lateral Tee | Materials: Tin Bronze, Aluminum Bronze, Lead Bronze, Nimonic 75, Nimonic 80A, Nimonic 90, AISI 4140, AISI 4130, Mild Steel, Al6XN |
ASME B16.9 Buttweld Fittings Types
Butt weld Reducing Tee Industries & Applications
Buttweld Equal Tee Dimensional Tolerance
| Nominal Pipe Size | Outside diameter at bevel |
Center-to-End | |
|---|---|---|---|
| Run (C) | Outlet(M) | ||
| 1/2" | 21.3 | 25 | 25 |
| 3/4" | 26.7 | 29 | 29 |
| 1" | 33.4 | 38 | 38 |
| 1 1/4" | 42.2 | 48 | 48 |
| 1 1/2" | 48.3 | 57 | 57 |
| 2" | 60.3 | 64 | 64 |
| 2 1/2" | 73.0 | 76 | 76 |
| 3" | 88.9 | 86 | 86 |
| 3 1/2" | 101.6 | 95 | 95 |
| 4" | 114.3 | 105 | 105 |
| 5" | 141.3 | 124 | 124 |
| 6" | 168.3 | 143 | 143 |
| 8" | 219.1 | 178 | 178 |
| 10" | 273.0 | 216 | 216 |
| 12" | 323.8 | 254 | 254 |
| 14" | 355.6 | 279 | 279 |
| 16" | 406.4 | 305 | 305 |
| 18" | 457.0 | 343 | 343 |
| 20" | 508.0 | 381 | 381 |
| 22" | 559.0 | 419 | 419 |
| 24" | 610.0 | 432 | 432 |
Reducing Tee Dimensions
| NOMINAL PIPE SIZE | OUTSIDE DIAMETER | CENTER TO END | ||
|---|---|---|---|---|
| Inch | D | P | C | M |
| 1/2 x 3/8 | 21.3 | 17.1 | 25 | 25 |
| 1/2 x 1/4 | 21.3 | 13.7 | 25 | 25 |
| 3/4 x 1/2 | 26.7 | 21.3 | 29 | 29 |
| 3/4 x 3/8 | 26.7 | 17.1 | 29 | 29 |
| 1 x 3/4 | 33.4 | 26.7 | 38 | 38 |
| 1 x 1/2 | 33.4 | 21.3 | 38 | 38 |
| 1 1/4 x 1 | 42.2 | 33.4 | 48 | 48 |
| 1 1/4 x 3/4 | 42.2 | 26.7 | 48 | 48 |
| 1 1/4 x 1/2 | 42.2 | 21.3 | 48 | 48 |
| 1 1/2 x 1 1/2 | 48.3 | 42.2 | 57 | 57 |
| 1 1/2 x 1 | 48.3 | 33.4 | 57 | 57 |
| 1 1/2 x 3/4 | 48.3 | 26.7 | 57 | 57 |
| 1 1/2 x 1/2 | 48.3 | 21.3 | 57 | 57 |
| 2 x 1 1/2 | 60.3 | 48.2 | 64 | 60 |
| 2 x 1 1/4 | 60.3 | 42.2 | 64 | 57 |
| 2 x 1 | 60.3 | 33.4 | 64 | 51 |
| 2 x 3/4 | 60.3 | 26.7 | 64 | 44 |
| 2 1/2 x 2 | 73 | 60.3 | 76 | 70 |
| 2 1/2 x 1 1/2 | 73 | 48.3 | 76 | 67 |
| 2 1/2 x 1 1/4 | 73 | 42.2 | 76 | 64 |
| 2 1/2 x 1 | 73 | 33.4 | 76 | 57 |
| 3 x 2 1/2 | 88.9 | 73 | 86 | 83 |
| 3 x 2 | 88.9 | 60.3 | 86 | 76 |
| 3 x 1 1/2 | 88.9 | 48.3 | 86 | 73 |
| 3 x 1 1/4 | 88.9 | 42.2 | 86 | 70 |
| 3 1/2 x 3 | 101.6 | 88.9 | 95 | 92 |
| 3 1/2 x 21/2 | 101.6 | 73 | 95 | 89 |
| 3 1/2 x 2 | 101.6 | 60.3 | 95 | 83 |
| 3 1/2 x 1 1/2 | 101.6 | 48.3 | 95 | 79 |
| 4 x 3 1/2 | 114.3 | 101.6 | 105 | 102 |
| 4 x 3 | 114.3 | 88.9 | 105 | 98 |
| 4 x 2 1/2 | 114.3 | 73 | 105 | 95 |
| 4 x 2 | 114.3 | 60.3 | 105 | 89 |
| 4 x 1 1/2 | 114.3 | 48.3 | 105 | 86 |
| 5 x 4 | 141.3 | 114.3 | 124 | 117 |
| 5 x 3 1/2 | 141.3 | 101.6 | 124 | 114 |
| 5 x 3 | 141.3 | 88.9 | 124 | 111 |
| 5 x 2 1/2 | 141.3 | 73 | 124 | 108 |
| 5 x 2 | 141.3 | 60.3 | 124 | 105 |
| 6 x 5 | 168.3 | 141.3 | 143 | 137 |
| 6 x 4 | 168.3 | 114.3 | 143 | 130 |
| 6 x 3 1/2 | 168.3 | 101.6 | 143 | 127 |
| 6 x 3 | 168.3 | 88.9 | 143 | 124 |
| 6 x 2 1/2 | 168.3 | 73 | 143 | 121 |
| 8 x 6 | 219.1 | 168.3 | 178 | 168 |
| 8 x 5 | 219.1 | 141.3 | 178 | 162 |
| 8 x 4 | 219.1 | 114.3 | 178 | 156 |
| 8 x 3 1/2 | 219.1 | 101.6 | 178 | 152 |
| 10 x 8 | 273.1 | 219.1 | 216 | 203 |
| 10 x 6 | 273.1 | 168.1 | 216 | 194 |
| 10 x 5 | 273.1 | 141.3 | 216 | 191 |
| 10 x 4 | 273.1 | 114.3 | 216 | 184 |
| 12 x 10 | 323.9 | 273.1 | 254 | 241 |
| 12 x 8 | 323.9 | 219.1 | 254 | 229 |
| 12 x 6 | 323.9 | 168.3 | 254 | 219 |
| 12 x 5 | 323.9 | 141.3 | 254 | 216 |
| 14 x 12 | 355.6 | 323.9 | 279 | 270 |
| 14 x 10 | 355.6 | 273.1 | 279 | 257 |
| 14 x 8 | 355.6 | 219.1 | 279 | 248 |
| 14 x 6 | 355.6 | 168.3 | 279 | 238 |
| 16 x 14 | 406.4 | 355.6 | 305 | 305 |
| 16 x 12 | 406.4 | 323.9 | 305 | 295 |
| 16 x 10 | 406.4 | 273.1 | 305 | 283 |
| 16 x 8 | 406.4 | 219.1 | 305 | 273 |
| 16 x 6 | 406.4 | 168.3 | 305 | 264 |
| 18 x 16 | 457 | 406.4 | 343 | 330 |
| 18 x 14 | 457 | 355.6 | 343 | 330 |
| 18 x 12 | 457 | 323.9 | 343 | 321 |
| 18 x 10 | 457 | 273.1 | 343 | 308 |
| 18 x 8 | 457 | 219.1 | 343 | 298 |
| 20 x 18 | 508 | 457 | 381 | 368 |
| 20 x 16 | 508 | 406.4 | 381 | 356 |
| 20 x 14 | 508 | 355.6 | 381 | 356 |
| 20 x 12 | 508 | 323.9 | 381 | 346 |
| 20 x 10 | 508 | 273.1 | 381 | 333 |
| 20 x 8 | 508 | 219.1 | 381 | 324 |
| 22 x 20 | 559 | 508 | 419 | 406 |
| 22 x 18 | 559 | 457 | 419 | 394 |
| 22 x 16 | 559 | 406.4 | 419 | 381 |
| 22 x 14 | 559 | 355.6 | 419 | 381 |
| 22 x 12 | 559 | 323.9 | 419 | 371 |
| 24 x 10 | 559 | 273.1 | 419 | 359 |
| 24 x 22 | 610 | 559 | 432 | 432 |
| 24 x 20 | 610 | 508 | 432 | 432 |
| 24 x 18 | 610 | 457 | 432 | 419 |
| 24 x 16 | 610 | 406.4 | 432 | 406 |
| 24 x 14 | 610 | 355.6 | 432 | 406 |
| 24 x 12 | 610 | 323.9 | 432 | 397 |
| 24 x 10 | 610 | 273.1 | 432 | 384 |
Lateral Tee Dimensions
| Nominal Pipe Size (NPS) | Center-to-End (C) | Run Diameter (D) | Branch Diameter (d) | Thickness (SCH) | Type |
|---|---|---|---|---|---|
| 1/2″ | 38 mm | 21.3 mm | 21.3 mm | SCH 40 / 80 | Seamless / Welded |
| 1″ | 57 mm | 33.4 mm | 33.4 mm | SCH 40 / 80 | Seamless / Welded |
| 2″ | 76 mm | 60.3 mm | 60.3 mm | SCH 40 / 80 | Seamless / Welded |
| 4″ | 114 mm | 114.3 mm | 114.3 mm | SCH 40 / 80 / 160 | Seamless / Welded |
| 6″ | 152 mm | 168.3 mm | 168.3 mm | SCH 40 / 80 / XXS | Seamless / Welded |
ASME B16.9 Buttweld Equal Tee Weight Chart
| NPS | LBS | KG |
| 1/2 | 0.35 | 0.16 |
| 3/4 | 0.45 | 0.2 |
| 1 | 0.75 | 0.34 |
| 1.1/4 | 1.3 | 0.59 |
| 1.1/2 | 2 | 0.91 |
| 2 | 3.5 | 1.59 |
| 2.1/2 | 6 | 2.72 |
| 3 | 7 | 3.18 |
| 3.1/2 | 9 | 4.08 |
| 4 | 12 | 5.44 |
| 5 | 21 | 9.53 |
| 6 | 34 | 15.42 |
| 8 | 55 | 24.95 |
| 10 | 85 | 38.56 |
| 12 | 120 | 54.43 |
| 14 | 165 | 74.84 |
| 16 | 195 | 88.45 |
| 18 | 249 | 112.94 |
| 20 | 342 | 155.13 |
| 22 | 414 | 187.79 |
| 24 | 528 | 239.5 |
| 26 | 770 | 349.27 |
| 30 | 1060 | 480.81 |
| 36 | 1490 | 675.85 |
| NPS | LBS | KG |
