High-Quality End Caps – Grades: A403 WP316L, WP317L, A234 WPB, A860 WPHY 52/60/70, Duplex 2205, A815 UNS S31803, Inconel 600/800, Monel 400. Designed per ASME B16.9, DIN 2617, MSS SP-75. Stock for global distribution.

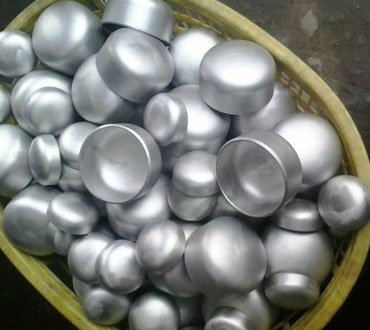

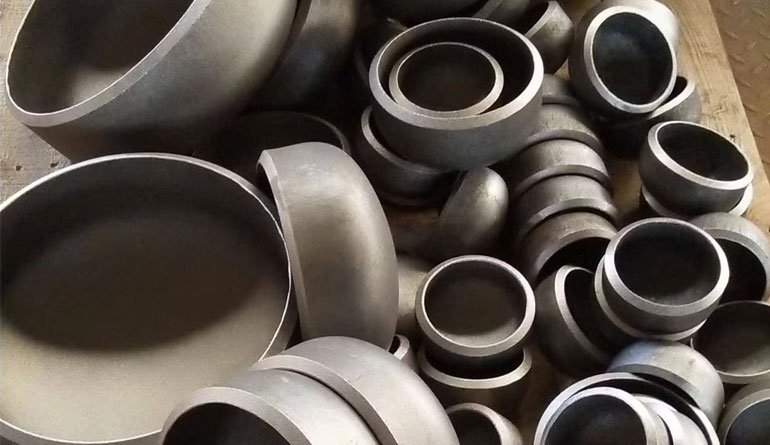

Bhavani Industries is a leading manufacturer and supplier of high-quality Buttweld End Caps, also known as Pipe Caps, designed to effectively seal the ends of piping systems. These fittings serve a vital function by closing off unused pipe openings, preventing leakage, protecting pipe ends from mechanical damage, and keeping out moisture, dirt, or other contaminants. End caps are typically welded to the end of a pipe to create a permanent and secure closure, making them ideal for both temporary and permanent piping terminations in industrial systems.
We offer end caps in a wide range of sizes from ½” to 48” (DN15 to DN1200) with wall thickness options ranging from SCH 5 to SCH 160 / XXS. All products are manufactured in accordance with international standards such as ASME B16.9, ASTM A234, ASTM A403, MSS-SP-75, and EN 10253, ensuring precision, strength, and leak-proof performance. Manufactured using advanced methods like hot and cold forming, machining, and beveling, each end cap is finished to ANSI B16.25 standards for weld preparation, making installation smooth and reliable under high-pressure and high-temperature conditions.
Our end caps are available in a variety of materials to suit different industrial needs, including Stainless Steel (304, 304L, 316, 316L, 321, 347, 904L), Carbon Steel (ASTM A234 WPB, WPC), Alloy Steel (WP5, WP11, WP22, WP91), and Nickel Alloys (Inconel, Monel, Hastelloy, Alloy 20). These materials are carefully selected based on their corrosion resistance, mechanical strength, and suitability for critical service conditions. Our end caps are widely used in oil and gas, petrochemical, power generation, marine, water treatment, and chemical processing industries, where safe and durable pipeline closure is essential.
The use of buttweld pipe caps offers numerous advantages such as secure sealing of pipelines, protection from environmental exposure, elimination of flow disruptions, and cost savings by avoiding the need for additional valves or equipment at pipe ends. To ensure top-tier quality, every end cap undergoes stringent testing including PMI (Positive Material Identification), Ultrasonic Testing (UT), Radiography (RT), Hydrostatic Testing, and third-party inspections as per client requirements. Bhavani Industries remains committed to delivering precision-engineered end caps that ensure reliability, durability, and performance in the most demanding industrial applications.
Premium Quality Pipe Caps & End Caps – Sizes ½" to 48", SCH 10 to XXS. Built to ASME B16.9 and DIN 2617 standards. Global supply and bulk purchase options.
Technical Index
Industrial End Caps Standard Specifications
| Buttweld Cap Size Availability | 1/2″～48″ NB (Seamless, Welded, and Fabricated) |
|---|---|
| Types | End Caps, Pipe Caps, Pipe End Caps |
| Wall Thickness | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and others |
| Dimensions | ASME B16.9, MSS-SP-75, ANSI/ASME B16.28 (where applicable) |
| DIN | DIN 2615, DIN 2616, DIN 2617 (where applicable) |
| BS | BS EN 10253, BS 1640 (where applicable) |
| Material Grades | Stainless Steel (SS304, SS316), Carbon Steel (ASTM A234 WPB), Alloy Steel, Duplex, Super Duplex, Inconel |
| Coating / Surface Treatment | Black Paint, Anti-rust Coating, Galvanized (Hot/Cold Dip), Pickled, Passivated |
| Ends | Beveled (BW) Ends as per ASME B16.25, Plain Ends, Flanged (on request) |
| Tolerance | As per ASME B16.9 / customer specification |
| Testing | PMI, Hydro Test, UT, RT, Visual, Dimensional Inspection, Hardness Test (on request) |
| Certification | EN 10204 3.1 / 3.2, ISO 9001:2015, PED Certified (on request) |
| Material Sourcing Regions | India, Japan, USA, Europe, South Korea |
| Global Export Markets | UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, USA, Canada, Singapore, Malaysia, Nigeria, Egypt, South Africa, Kenya, Turkey, Kazakhstan, Indonesia, Brazil, Australia |
Industrial Buttweld Pipe Caps Standards
| ANSI/ASME B16.9 – Factory-Made Wrought Steel Buttwelding Fittings | ANSI/ASME B16.28 – Wrought Steel Short Radius Elbows and Returns | ANSI/ASME B16.25 – Buttwelding Ends(beval standards) | MSS SP-43 – Wrought and fabricated Butt welding Fittings for Light Wall Applications |
| MSS SP-75 – High Test Wrought Butt welding Fittings | DIN 2616 – Butt welding Pipe Fittings: Reducers | DIN 2617 – Butt welding Pipe Fittings: Caps | DIN28011 – Dished Ends(used in pressure vessels) |
| EN10253-1 Butt-welding Pipe Fittings(Non Alloy Steels) | EN10253-2 Butt-welding Pipe Fittings(Stainless/Alloy Steels) |
Buttweld End Cap Material Grades and Standards
| Stainless Steel End Caps / Pipe Caps | ASTM A403 WP304/304L, WP316/316L, ASTM A774(Welded):DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
|---|---|
| Duplex Steel End Caps / Pipe Caps | ASTM A 815 / ASME SA 815 UNS S31803, S32205. Werkstoff No. 1.4462 |
| Super Duplex Steel End Caps / Pipe Caps | ASTM A 815 / ASME SA 815 UNS S32750, S32950. Werkstoff No. 1.4410 |
| Carbon Steel End Caps / Pipe Caps | ASTM A234 / ASME SA234 WPB , WPBW, ASTM A860 WPHY 42, 46, 52, 60, 65, 70. |
| Alloy Steel End Caps / Pipe Caps | ASTM A234 / ASME SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| High Nickel Alloy End Caps / Pipe Caps | ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. |
| Other Specialty End Caps / Pipe Caps | Materials: Tin Bronze, Aluminum Bronze, Lead Bronze, Nimonic 75, Nimonic 80A, Nimonic 90, AISI 4140, AISI 4130, Mild Steel, Al6XN |
ASME B16.9 Buttweld Fittings Types
Butt weld Cap Industries & Applications
Buttweld Pipe End Cap Dimensional Tolerance
|
CAPS – ANSI B 16.9 dimension |
|||
| inches | mm | Height | |
| D | E | ||
| 1/2 | 15 | 21,34 | 25,40 |
| 3/4 | 20 | 26,67 | 31,75 |
| 25 | 33,40 | 38,10 | |
| 1 1/4 | 32 | 42,16 | 38,10 |
| 1 1/2 | 40 | 48,26 | 38,10 |
| 2 | 50 | 60,32 | 38,10 |
| 2 1/2 | 65 | 73,02 | 38,10 |
| 3 | 80 | 88,90 | 50,80 |
| 3 1/2 | 90 | 101,60 | 63,50 |
| 4 | 100 | 114,30 | 63,50 |
| 5 | 125 | 141,30 | 76,20 |
| 6 | 150 | 168,27 | 88,90 |
| 8 | 200 | 219,07 | 101,60 |
| 10 | 250 | 273,05 | 127,00 |
| 12 | 300 | 323,85 | 152,40 |
| 14 | 350 | 355,60 | 165,10 |
| 16 | 400 | 406,40 | 177,80 |
| 18 | 450 | 457,20 | 203,20 |
| 20 | 500 | 508,00 | 228,60 |
| 22 | 550 | 558,80 | 254,00 |
| 24 | 600 | 609,60 | 266,70 |
| 28 | 700 | 711,20 | 266,70 |
| Dimension in mm | |||
ASME B16.9 Buttweld End Cap Weight Chart
| NPS | STD | XS | SCH 160 | XXS |
|---|---|---|---|---|
| 1 | 0.09 | 0.14 | 0.18 | 0.23 |
| 1.1/4 | 0.14 | 0.18 | 0.23 | 0.34 |
| 1.1/2 | 0.18 | 0.23 | 0.27 | 0.41 |
| 2 | 0.27 | 0.34 | 0.57 | 0.68 |
| 2.1/2 | 0.41 | 0.45 | 0.79 | 1.13 |
| 3 | 0.68 | 0.79 | 1.32 | 1.81 |
| 3.1/2 | 0.91 | 1.13 | – | 2.72 |
| 4 | 1.13 | 1.36 | 2.68 | 3.4 |
| 5 | 2.04 | 2.49 | 4.54 | 5.44 |
| 6 | 2.95 | 4.08 | 6.8 | 8.16 |
| 8 | 5.44 | 7.26 | 14.06 | 13.61 |
| 10 | 9.07 | 11.34 | 25.85 | – |
| 12 | 13.61 | 16.33 | 43.09 | – |
| 14 | 16.33 | 20.41 | – | – |
| 16 | 18.14 | 24.49 | – | – |
| 18 | 24.49 | 32.66 | – | – |
| 20 | 34.02 | 39.01 | – | – |
| 22 | 42.64 | 56.7 | – | – |
| 24 | 43.54 | 58.97 | – | – |
| 26 | 53.98 | 72.12 | – | – |
| 30 | 78.02 | 103.87 | – | – |
