Comprehensive Stock of Forged Elbow Fittings as per ASME B16.11 – 45° & 90° Types – Socket Weld & Threaded – Made from ASTM A105 Carbon Steel, A182 F304L/F316L Stainless Steel, F11/F22 Alloy Steel, Duplex 2205, Super Duplex 2507, and Corrosion-Resistant Nickel Alloys including Inconel 625, Monel 400, Hastelloy C276.

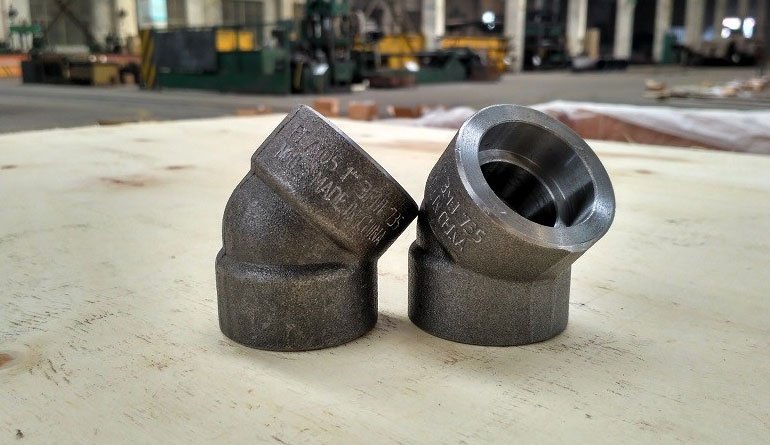

Bhavani Industries specializes in the production of high-performance 90° and 45° forged elbow fittings, designed to efficiently redirect flow in piping systems. These elbows are critical for changing the direction of flow in a pipeline while maintaining pressure and minimizing turbulence. With robust construction and precise forging, our elbows ensure long-term durability, structural integrity, and leak-free operation, even under high-pressure and high-temperature conditions.
We offer both 90-degree elbows for right-angle directional change and 45-degree elbows for smoother, gradual flow transitions. These fittings are available in socket weld and threaded (screwed) ends, manufactured in accordance with ASME B16.11, ensuring global quality and dimensional standards. Available in sizes ranging from 1/8” to 4” and pressure ratings including Class 2000, 3000, 6000, and 9000, our elbows are ideal for a wide range of industrial piping systems.
Our elbows are manufactured using premium-grade materials such as Carbon Steel (ASTM A105, A350 LF2), Stainless Steel (ASTM A182 F304, F316, F321, F347), Alloy Steel (F1, F5, F11, F22, F91), Duplex and Super Duplex Steel (F51, F53, F55), and Nickel Alloys (Inconel 600/625, Monel 400/K500, Hastelloy C22/C276). Every elbow is precisely heat-treated and machined for accurate angles, excellent surface finish, and optimal mechanical performance.
Forged elbows from Bhavani Industries are widely used across various industries, including oil & gas, petrochemical, power generation, shipbuilding, and chemical processing. Their compact design, corrosion resistance, and high-pressure handling make them suitable for the most demanding environments. With a focus on quality and customer satisfaction, we ensure that every fitting delivers superior reliability and long service life.
Engineered Forged Elbows (90° & 45°) in 1/8”–4” size range and pressure classes 2000, 3000, 6000, and 9000 – manufactured as per ASME B16.11 and MSS-SP standards – ideal for directional changes in high-pressure industrial piping systems.
Technical Index
Industrial Forged Elbow Standard Specifications
| Forged Elbow Size Availability | 1/8″ ～ 4″ (Threaded & Socket Weld) |
|---|---|
| Pressure Class Ratings | 2000LBS,3000LBS, 6000LBS, 9000LBS |
| Dimensions | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97 |
| DIN | DIN 2986, 2999 |
| BS | BS 3799 |
| Thread | BSPP & BSPT Threads, NPTF & NPT Threads, UNF & UN Threads |
| Types | 90° Elbow, 45° Elbow |
| Material Grades | Carbon Steel (A105, A350 LF2), Stainless Steel (304/304L, 316/316L), Alloy Steel (F11, F22), Duplex, Super Duplex, Inconel, Monel, Hastelloy |
| Coating / Surface Treatment | Black Paint, Anti-rust Coating, Galvanized, Transparent Oil |
| Ends | Threaded Ends (NPT/BSP), Socket Weld Ends |
| Tolerance | As per ASME B16.11 |
| Testing | PMI, Hydro Test, UT, RT, Visual & Dimensional Inspection |
| Certification | EN 10204 3.1 / 3.2, ISO 9001:2015, PED 2014/68/EU (where applicable) |
| Material Sourcing Regions | India, South Korea, Japan, USA, Germany, Italy |
| Global Export Markets | UAE, Saudi Arabia, Oman, Qatar, Bahrain, Kuwait, USA, Malaysia, Singapore, Egypt, Nigeria, South Africa, Kenya, Ghana, Turkey, Brazil, Mexico |
Industrial 90 Degree Forged Elbow Standards
| ASME B16.11 – Forged Steel Fittings, Socket-Welding and Threaded | BS 3799 – Screwed and Socket-Welding for the Petroleum Industry | MSS SP-79 – Socket-Welding Reducer Inserts | MSS SP-83 – Class 3000 Steel Pipe Unions, Socket-Welding and Threaded |
| MSS SP-95 – Swage(d) Nipples and Bull Plugs | MSS SP-97 – Integrally Reinforced Forged Branch Outlet Fittings | DIN 2986 – Threaded Fittings | DIN 2999 – Pipe Threads for Fittings (British Standard Pipe Threads) |
| ISO 49 – Malleable Iron Fittings, Threaded | ISO 7/1 – Pipe Threads Where Pressure-tight Joints Are Made on the Threads | EN 10241 – Steel Threaded Pipe Fittings | JIS B2316 – Japanese standard for forged pipe fittings. |
Forged Elbow Material Grades and Standards
| Stainless Steel Forged Elbow | ASTM / ASME A/SA 182: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
|---|---|
| Duplex Steel Forged Elbow | ASTM A182 / ASME SA182 UNS S31803, S32205. Werkstoff No. 1.4462 |
| Super Duplex Steel Forged Elbow | ASTM A182 / ASME SA182 UNS S32750, S32760, S32950. Werkstoff No. 1.4410 |
| Carbon Steel Forged Elbow | ASTMA 105/A694/ A350 LF3/A350 LF2: F42, F46, F52, F56, F60, F65, F70 |
| Alloy Steel Forged Elbow | ASTM A182: F1, F5, F9, F11, F22, F91 |
| High Nickel Alloy Forged Elbow | ASTM / ASME SB 564 / 160 / 472: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3) |
| Brass Forged Elbow | Brass CA 360, CA 345 and CA 377 / SAE J530, SAE J531 and ASA |
ASME B16.11 Forged Fittings Types
Forged Socket weld Elbow Industries & Applications
ASME B16.11 Forged Elbow Dimensions
Dimensions NPS 1/2 to 4 – 90°/45° Class 3000
| NPS | Socket Bore |
Depth Socket |
Bore DIA |
Socket WT |
Body WT |
|---|---|---|---|---|---|
| B | J | D | C | G | |
| 1/2 | 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
3.75 |
| 3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
3.90 |
| 1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
4.55 |
| 1.1/4 | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
4.85 |
| 1.1/2 | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
5.10 |
| 2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
5.55 |
| 2.1/2 | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
7.00 |
| 3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
7.60 |
| 4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
8.55 |
| NPS | Center to bottom of socket A |
||||
| 90° | 45° | ||||
| 1/2 | 15.5 | 11.5 | |||
| 3/4 | 19.5 | 12.5 | |||
| 1 | 22 | 14 | |||
| 1.1/4 | 27 | 17 | |||
| 1.1/2 | 32 | 21 | |||
| 2 | 38 | 25 | |||
| 2.1/2 | 41.5 | 29 | |||
| 3 | 57.5 | 31.5 | |||
| 4 | 66.5 | 41.5 | |||
Dimensions NPS 1/2 to 2 – 90°/45° Class 6000
| NPS | Socket Bore |
Depth Socket |
Bore DIA |
Socket WT |
Body WT |
|---|---|---|---|---|---|
| B | J | D | C | G | |
| 1/2 | 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
4.80 |
| 3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
5.55 |
| 1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
6.35 |
| 1.1/4 | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
6.35 |
| 1.1/2 | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
7.15 |
| 2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
8.75 |
| NPS | Center to bottom of socket A |
||||
| 90° | 45° | ||||
| 1/2 | 19.5 | 12.5 | |||
| 3/4 | 22.5 | 14.5 | |||
| 1 | 27 | 17 | |||
| 1.1/4 | 32 | 21 | |||
| 1.1/2 | 38 | 25 | |||
| 2 | 41 | 29 | |||
Forged Threaded Elbow Dimensions
| Class 2000 | Nominal Pipe Size |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | – | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 3 | 3 3/8 | 4 3/16 | |
| B | – | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/16 | 4 5/16 | 5 3/4 | |
| Wt | – | 0.198 | 0.283 | 0.500 | 0.773 | 1.013 | 1.550 | 2.180 | 3.140 | 6.500 | 10.925 | 26.675 | |
| Class 3000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 1/2 | |
| B | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 6 | |
| Wt | 0.236 | 0.350 | 0.592 | 0.973 | 1.355 | 2.265 | 2.407 | 3.500 | 5.920 | 11.900 | 14.438 | 31.975 | |
| Class 6000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 3/16 | 4 1/2 | |
| B | 1 1/6 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 5 3/4 | 6 | |
| Wt | 0.250 | 0.625 | 1.023 | 1.625 | 2.625 | 3.500 | 6.750 | 7.500 | 13.438 | 20.875 | 39.050 | 38.000 | |
Weight Chart of ANSI B16.11 Forged Elbow
| Class 2000 | Minimal Pipe Size | 1/4 | 1/8 | 1/2 | 3/8 | 3/4 | 1 1/4 | 1 | 1 1/2 | 2 1/2 | 2 | 3 | 4 |
| B | 29/32 | – | 1 5/16 | 1 1/16 | 1 9/16 | 2 7/32 | 1 27/32 | 2 1/2 | 3 11/16 | 3 1/32 | 4 5/16 | 5 3/4 | |
| F | 3/4 | – | 1 | 3/4 | 1 1/8 | 1 5/16 | 1 1/4 | 1 3/8 | 2 1/16 | 1 11/16 | 2 1/2 | 3 1/8 | |
| Wt | 0.188 | – | 0.435 | 0.236 | 0.740 | 1.375 | 1.058 | 1.740 | 7.750 | 2.883 | 11.313 | 19.125 | |
Class 3000 |
1/4 | 1/8 | 1/2 | 3/8 | 3/4 | 1 1/4 | 1 | 1 1/2 | 2 1/2 | 2 | 3 | 4 | |
| B | 1 1/16 | 29/32 | 1 9/16 | 1 5/16 | 1 27/32 | 2 1/2 | 2 7/32 | 3 1/32 | 4 | 3 11/32 | 4 3/4 | 6 | |
| F | 3/4 | 3/4 | 1 1/8 | 1 | 1 1/4 | 1 3/8 | 1 5/16 | 1 11/16 | 2 1/16 | 1 3/4 | 2 1/2 | 3 1/8 | |
| Wt | 0.290 | 0.250 | 0.750 | 0.500 | 1.188 | 2.235 | 1.988 | 3.000 | 7.375 | 4.930 | 13.588 | 19.063 | |
Class 6000 |
1/4 | 1/8 | 1/2 | 3/8 | 3/4 | 1 1/4 | 1 | 1 1/2 | 2 1/2 | 2 | 3 | 4 | |
| B | 1 5/16 | 1 1/6 | 1 27/32 | 1 9/16 | 2 7/32 | 3 1/32 | 2 1/2 | 3 11/32 | 4 3/4 | 4 | 5 3/4 | – | |
| F | 1 | 3/4 | 1 1/4 | 1 1/8 | 1 5/16 | 1 11/16 | 1 3/8 | 1 3/4 | 2 1/2 | 2 1/16 | 3 1/8 | – | |
| Wt | 0.640 | 0.250 | 1.438 | 0.500 | 2.188 | 4.688 | 2.785 | 5.750 | 15.000 | 9.500 | 30.563 | – |
Major Industrial Forged Threaded Elbow Export Countries
United Arab Emirates (UAE), Jordan, Bahrain, Kuwait, Oman, Qatar, Saudi Arabia, United States of America (USA), Singapore, Malaysia, Azerbaijan, Armenia, Georgia, Egypt, Algeria, Nigeria, South Africa, Kenya, Morocco, Ethiopia, Ghana, Tanzania, Sudan, Uganda, Angola.
