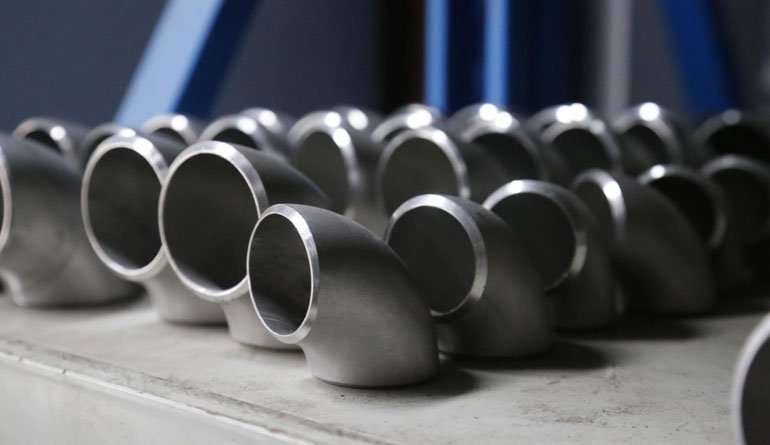

ASME B16.9 45° Elbows (Long/Short Radius) – Buttweld pipe fittings in SS304/316, ASTM A234 WPB and alloy steel. Sizes from 1/2" to 12" with beveled ends.
Bhavani Industries is a leading manufacturer and exporter of premium-quality Buttweld 45 Degree Elbows, designed in compliance with ASME B16.9 and other global standards. Our 45° elbows are engineered for smooth directional changes in piping systems, reducing turbulence and pressure drops. Available in both Long Radius (LR) and Short Radius (SR) types, these elbows are ideal for applications requiring compact layouts or gradual flow transitions. We offer a comprehensive size range from ½” to 48” (DN15 to DN1200), with wall thicknesses ranging from SCH 5 to SCH 160 / XXS.
Our 45 Degree Elbows are manufactured using high-grade materials to ensure strength, durability, and corrosion resistance under extreme conditions. Material options include Stainless Steel (SS 304, 304L, 316, 316L, 321, 347), Carbon Steel (ASTM A234 WPB, WPC), and Alloy Steel (ASTM A234 WP5, WP11, WP22, WP91). Every fitting is produced using advanced techniques such as CNC machining, hydraulic pressing, induction heating, and precision beveling, ensuring excellent dimensional accuracy and welding compatibility.
We adhere to strict quality control procedures to guarantee product performance and reliability. All elbows undergo thorough inspection processes including 100% PMI (Positive Material Identification), Ultrasonic Testing (UT), Radiographic Testing (RT), Hydro Testing, and third-party inspections upon request. Our fittings conform to international standards such as ASME B16.9, ASTM A403, EN 10253, and MSS SP-43, making them suitable for high-pressure, high-temperature, and corrosive service environments.
Bhavani Industries proudly supplies Buttweld 45 Degree Elbows to major industries including oil & gas, petrochemicals, power generation, refineries, and offshore platforms. With a robust export presence across Africa (Nigeria, Kenya, South Africa), the Middle East (UAE, Saudi Arabia, Oman, Qatar), and the USA, we deliver reliable and timely solutions tailored to each client’s project requirements. Our commitment to quality, engineering excellence, and customer satisfaction makes us a trusted name in the global piping components industry.
Global supplier of 45° Elbow LR/SR Buttweld Fittings in sizes ½” to 48”. Available in SCH 10 to XXS. Produced to ASME, MSS-SP, and DIN standards for seamless system compatibility.
Technical Index
Industrial 45 Degree Elbow Standard Specifications
| 45 Degree Elbow Size Availability | 1/2″～24″ NB. (Seamless & 100% X-Ray Welded, Fabricated) |
|---|---|
| Form | 45° Short Radius Elbow, 45° Long Radius Elbow |
| Wall Thickness | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| DIN | DIN2605, 2615, 2616, 2617 |
| BS | BS1640(where applicable) |
| Types | Seamless & Welded |
| Coating / Surface Treatment | Black Paint, Anti-rust Paint, Galvanized (Hot and Cold Dip), Transparent Oil |
| Ends | Beveled (BW) Ends as per ASME B16.25 |
| Tolerance | As per ASME B16.9 |
| Testing | PMI, Hydro Test, UT, RT, Visual & Dimensional Inspection |
| Certification | EN 10204 3.1 / 3.2, ISO 9001:2015 |
| Material Sourcing Regions | India, USA, Japan, West Europe, South Korea |
| Global Export Markets | UAE, Jordan, Bahrain, Kuwait, Oman, Qatar, Saudi Arabia, USA, Singapore, Malaysia, Azerbaijan, Armenia, Georgia, Egypt, Nigeria, South Africa, Kenya, Morocco, Ethiopia, Ghana, Tanzania, Sudan, Uganda, Angola |
Industrial Buttweld 45 Degree Long Radius Elbow Standards
| ANSI/ASME B16.9 – Factory-Made Wrought Steel Buttwelding Fittings | ANSI/ASME B16.28 – Wrought Steel Short Radius Elbows and Returns | ANSI/ASME B16.25 – Buttwelding Ends(beval standards) | MSS SP-43 – Wrought and fabricated Butt welding Fittings for Light Wall Applications |
| MSS SP-75 – High Test Wrought Butt welding Fittings | DIN 2616 – Butt welding Pipe Fittings: Reducers | DIN 2617 – Butt welding Pipe Fittings: Caps | DIN28011 – Dished Ends(used in pressure vessels) |
| EN10253-1 Butt-welding Pipe Fittings(Non Alloy Steels) | EN10253-2 Butt-welding Pipe Fittings(Stainless/Alloy Steels) |
Buttweld 45 Degree Elbow Material Grades and Standards
| Stainless Steel 45 Degree Elbow(LR / SR Elbow) | ASTM A403 WP304/304L, WP316/316L, ASTM A774(Welded):DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
|---|---|
| Duplex Steel 45 Degree Elbow(LR / SR Elbow) | ASTM A 815 / ASME SA 815 UNS S31803, S32205. Werkstoff No. 1.4462 |
| Super Duplex Steel 45 Degree Elbow(LR / SR Elbow) | ASTM A 815 / ASME SA 815 UNS S32750, S32950. Werkstoff No. 1.4410 |
| Carbon Steel 45 Degree Elbow(LR / SR Elbow) | ASTM A234 / ASME SA234 WPB , WPBW, ASTM A860 WPHY 42, 46, 52, 60, 65, 70. |
| Alloy Steel 45 Degree Elbow(LR / SR Elbow) | ASTM A234 / ASME SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| High Nickel Alloy 45 Degree Elbow(LR / SR Elbow) | ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. |
| Other Specialty 45 Degree Elbow(LR / SR Elbow) | Materials: Tin Bronze, Aluminum Bronze, Lead Bronze, Nimonic 75, Nimonic 80A, Nimonic 90, AISI 4140, AISI 4130, Mild Steel, Al6XN |
ASME B16.9 Buttweld Fittings Types
Butt weld 45 Degree Short Radius Elbow Industries & Applications
ASME B16.9 45 Degree Short Radius Elbow Dimensional Tolerance
| Nom. Pipe Size |
Pipe Sched. or No. |
Center- to-end Dimen. |
Outside Dia. |
Inside Dia. |
Wall Thick. |
Approx. Weight (lb.) |
| F | OD | ID | T | |||
| STANDARD WEIGHT | ||||||
| 1/2 | 40 | 5/8 | 0.840 | 0.622 | 0.109 | 0.1 |
| 3/4 | 40 | 7/16 | 1.050 | 0.824 | 0.113 | 0.1 |
| 1 | 40 | 7/8 | 1.315 | 1.049 | 0.133 | 0.2 |
| 1 1/4 | 40 | 1 | 1.660 | 1.380 | 0.140 | 0.4 |
| 1 1/2 | 40 | 1 1/8 | 1.900 | 1.610 | 0.145 | 0.5 |
| 2 | 40 | 1 3/8 | 2.375 | 2.067 | 0.154 | 0.9 |
| 2 1/2 | 40 | 1 3/4 | 2.875 | 2.469 | 0.203 | 1.5 |
| 3 | 40 | 2 | 3.500 | 3.068 | 0.216 | 2.5 |
| 3 1/2 | 40 | 2 1/4 | 4.000 | 3.548 | 0.226 | 3.5 |
| 4 | 40 | 2 1/2 | 4.500 | 4.026 | 0.237 | 4.8 |
| 5 | 40 | 3 1/8 | 5.563 | 5.047 | 0.258 | 7.8 |
| 6 | 40 | 3 3/4 | 6.625 | 6.065 | 0.280 | 12 |
| 8 | 40 | 5 | 8.625 | 7.981 | 0.322 | 23 |
| 10 | 40 | 6 1/4 | 10.750 | 10.020 | 0.365 | 42 |
| 12 | – | 7 1/2 | 12.750 | 12.000 | 0.375 | 61 |
| 14 | 30 | 8 3/4 | 14.000 | 13.250 | 0.375 | 79 |
| 16 | 30 | 10 | 16.000 | 15.250 | 0.375 | 103 |
| 18 | – | 11 1/4 | 18.000 | 17.250 | 0.375 | 132 |
| 20 | 20 | 12 1/2 | 20.000 | 19.250 | 0.375 | 160 |
| 22 | 20 | 13 1/2 | 22.000 | 21.250 | 0.375 | 195 |
| 24 | 20 | 15 | 24.000 | 23.250 | 0.375 | 238 |
| EXTRA STRONG | ||||||
| Nom. Pipe Size |
Pipe Sched. or No. |
Center- to-end Dimen. |
Outside Dia. |
Inside Dia. |
Wall Thick. |
Approx. Weight (lb.) |
| F | OD | ID | T | |||
| 1/2 | 80 | 5/8 | 0.840 | 0.546 | 0.147 | 0.2 |
| 3/4 | 80 | 7/16 | 1.050 | 0.742 | 0.154 | 0.3 |
| 1 | 80 | 7/8 | 1.315 | 0.957 | 0.179 | 0.4 |
| 1 1/4 | 80 | 1 | 1.660 | 1.278 | 0.191 | 0.5 |
| 1 1/2 | 80 | 1 1/8 | 1.900 | 1.500 | 0.200 | 0.6 |
| 2 | 80 | 1 3/8 | 2.375 | 1.939 | 0.218 | 1.1 |
| 2 1/2 | 80 | 1 3/4 | 2.875 | 2.323 | 0.276 | 2.1 |
| 3 | 80 | 2 | 3.500 | 2.900 | 0.300 | 3.5 |
| 3 1/2 | 80 | 2 1/4 | 4.000 | 3.364 | 0.318 | 4.8 |
| 4 | 80 | 2 1/2 | 4.500 | 3.826 | 0.337 | 6.5 |
| 5 | 80 | 3 1/8 | 5.563 | 4.813 | 0.375 | 11 |
| 6 | 80 | 3 3/4 | 6.625 | 5.761 | 0.432 | 18 |
| 8 | 80 | 5 | 8.625 | 7.625 | 0.500 | 35 |
| 10 | 60 | 6 1/4 | 10.750 | 9.750 | 0.500 | 56 |
| 12 | – | 7 1/2 | 12.750 | 11.750 | 0.500 | 80 |
| 14 | – | 8 3/4 | 14.000 | 13.000 | 0.500 | 100 |
| 16 | 40 | 10 | 16.000 | 15.000 | 0.500 | 131 |
| 18 | – | 11 1/4 | 18.000 | 17.000 | 0.500 | 172 |
| 20 | 30 | 12 1/2 | 20.000 | 19.000 | 0.500 | 210 |
| 22 | 30 | 13 1/2 | 22.000 | 21.000 | 0.500 | 259 |
| 24 | – | 15 | 24.000 | 23.000 | 0.500 | 302 |
ASME B16.9 45° Long Radius Elbow Dimensional Tolerance
| DIMENSIONAL TOLERANCES – ELBOWS | |||||||
| For all fittings | Elbows 90/45 deg | 180° Returns | |||||
| Nominal Pipe Size (NPS) | Outside Ø at Bevel |
Inside Ø at End |
Wall Thickness t / t1 |
Center to End Dim. A-B-C-M | Center to Center Dim. O |
Back to Face Dim. K |
Align- ment of Ends U |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 2 | 7 | 7 | 1 |
| 3 a 3 1/2 | 1 | 1,6 | less | 2 | 7 | 7 | 1 |
| 4 | +2 -1 | 1,6 | than | 2 | 7 | 7 | 1 |
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 2 | 7 | 7 | 1 |
| 8 | 2 | 1,6 | of nominal | 2 | 7 | 7 | 1 |
| 10 | +4 -3 | 3,2 | tickness | 2 | 7 | 7 | 2 |
| 12 a 18 | +4 -3 | 3,2 | 3 | 10 | 7 | 2 | |
| 20 a 24 | +6 -5 | 4,8 | 3 | 10 | 7 | 2 | |
| 26 a 30 | +7 -5 | 4,8 | 3 | ….. | ….. | ….. | |
| 32 a 48 | +7 -5 | 4,8 | 5 | ….. | ….. | ….. | |
ASME B16.9 Buttweld 45 Degree Elbow Weight Chart
| NPS inches |
ELBOWS SR 45° | |||
|---|---|---|---|---|
| Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
|
| 1/2 | 0.05 | 0.06 | 0.08 | 0.10 |
| 3/4 | 0.06 | 0.07 | 0.09 | 0.11 |
| 1 | 0.09 | 0.15 | 0.18 | 0.20 |
| 1 1/4 | 0.13 | 0.20 | 0.25 | 0.35 |
| 1 1/2 | 0.18 | 0.30 | 0.40 | 0.50 |
| 2 | 0.30 | 0.50 | 0.70 | 0.90 |
| 2 1/2 | 0.60 | 0.85 | 1.35 | 1.80 |
| 3 | 0.90 | 1.30 | 2.00 | 2.90 |
| 4 | 1.40 | 2.00 | 4.00 | 5.90 |
| 5 | 2.90 | 3.60 | 6.50 | 9.70 |
| 6 | 4.00 | 5.00 | 10.5 | 16.0 |
| 8 | 7.40 | 10.0 | 21.5 | 33.5 |
| 10 | 13.6 | 16.8 | 38.5 | 52.5 |
| 12 | 23.4 | 27.0 | 59.0 | 79.0 |
| 14 | 29.0 | 35.0 | 70.0 | 94.0 |
| 16 | 41.3 | 47.0 | 95.0 | 125 |
| 18 | 51.8 | 59.0 | 120 | 158 |
| 20 | 73.0 | 85.0 | 146 | 194 |
| 24 | 122 | 140 | 210 | 282 |
Major Industrial Buttweld 45 Degree Elbow Export Countries
United Arab Emirates (UAE), Jordan, Bahrain, Kuwait, Oman, Qatar, Saudi Arabia, United States of America (USA), Singapore, Malaysia, Azerbaijan, Armenia, Georgia, Egypt, Algeria, Nigeria, South Africa, Kenya, Morocco, Ethiopia, Ghana, Tanzania, Sudan, Uganda, Angola.
